Watway India

Water-Based Protection

Water-Based Fire Protection Systems

Comprehensive water-based fire protection solutions providing reliable, cost-effective fire suppression for industrial, commercial, and high-risk facilities.

Automatic Sprinkler Systems

Automatic sprinkler systems provide reliable fire protection by detecting heat and automatically discharging water to control or extinguish fires in their early stages.

System Types:

Wet Pipe Systems - Always charged with water
Dry Pipe Systems - For freezing environments
Pre-Action Systems - Double interlock protection
Deluge Systems - Open sprinkler coverage

Get Sprinkler Quote

Coverage Areas:

Commercial Buildings

Offices, malls, hotels

Manufacturing

Production facilities

Warehouses

Storage & distribution

Healthcare

Hospitals & clinics

Hydrant System Components:

Fire Pumps

Diesel, electric & jockey pumps

Piping Network

Underground & overhead mains

Hydrant Points

Landing valves & hose reels

Hydrant & Hose Reel Systems

Fire hydrant systems provide manual fire fighting capabilities with high-pressure water supply through strategically located hydrant points throughout the facility.

Key Features:

High-pressure water supply (minimum 7 kg/cm²)
30-meter coverage radius per hydrant
RRL hose & branch pipe assemblies
Manual & automatic pump starting

Design Hydrant System

Deluge & Foam Protection Systems

Specialized water-based systems for high-hazard applications requiring rapid, large-volume water application or foam suppression capabilities.

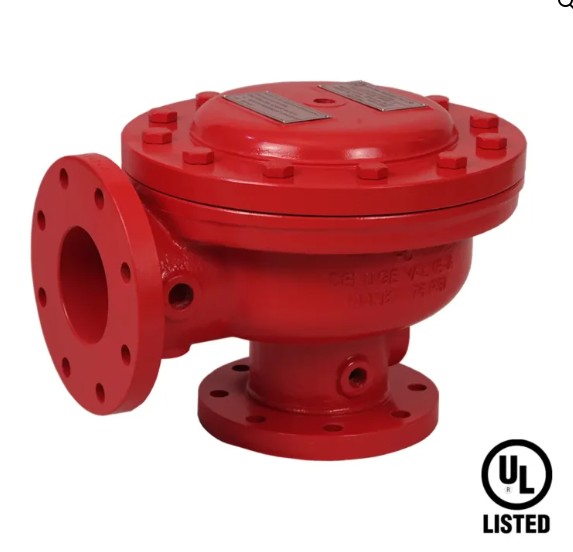

Deluge Systems

Open sprinkler systems that discharge water over large areas simultaneously when activated by fire detection systems.

Transformer protection
Conveyor belt systems
Aircraft hangars
Flammable liquid storage
High-hazard manufacturing

Learn More

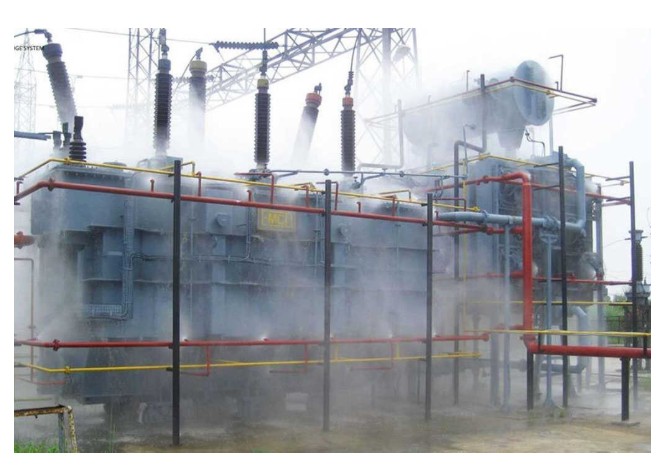

High Volume Water Spray (HVWS)

High-pressure water spray systems for cooling and fire suppression in industrial applications.

LPG/LNG tank protection
Process equipment cooling
Structural steel protection
Exposure protection
Emergency shutdown systems

Get Quote

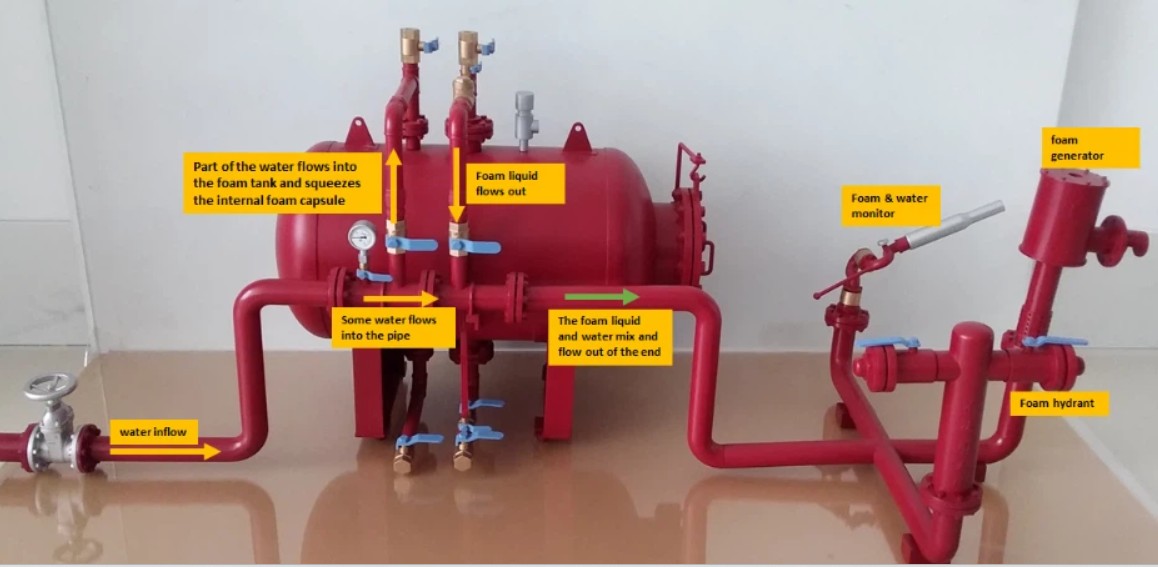

Foam Systems

Foam-based fire suppression for flammable liquid fires providing superior knockdown and securing.

AFFF (Aqueous Film Forming Foam)
AR-AFFF (Alcohol Resistant)
Protein & Synthetic foams
Fixed & portable systems
Rim seal protection

Explore Foam

Water Curtain & Monitor Systems

Specialized water application systems providing fire separation, exposure protection, and high-capacity fire suppression for industrial facilities.

Water Curtains

Fire separation
Exposure protection
Smoke control

Water Monitors

Manual operation
Remote control
High flow rates

Custom Solution

System Specifications

Water Curtain Systems:

• Operating pressure: 3.5 - 7.0 kg/cm²
• Spray density: 6-20 lpm/m²
• Coverage width: Up to 15 meters
• Activation: Manual or automatic

Water Monitor Systems:

• Flow capacity: 500-5000 lpm
• Range: Up to 60 meters
• Control: Manual/pneumatic/electric
• Materials: Bronze, stainless steel

Design Standards & Compliance

All our water-based fire protection systems are designed and installed in compliance with national and international standards ensuring optimal performance and reliability.

IS Codes

IS 15105, IS 2189, IS 903

NFPA Standards

NFPA 13, 14, 15, 16, 20

NBC Compliance

National Building Code

TAC Approved

Technical Advisory Committee

Our Design Process Includes:

Hydraulic calculations

Water demand analysis

AutoCAD drawings

Compliance verification

Plan Your Water-Based Fire Protection

Get professional design and installation services for comprehensive water-based fire protection systems.
